Large Precision Machining

Edgar Industries large machining capabilities can machine parts up to 354 inches x 137.8 inches. Our two 10 ton hoists that run the length of the facility allow us to move the large, heavy parts around our shop.

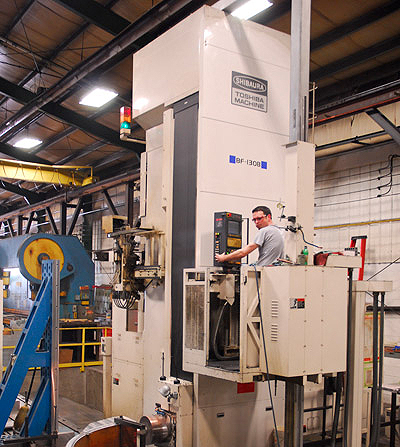

Our state of the art MAZAK and TOSHIBA machining centers are dedicated to large part machining.

We have capabilities of machining a wide range of large precision parts including:

Housings
Turbines and Discs
Blade Rings
Compressor Rings

Large Plates
Large Coupler Components
Suspension Components

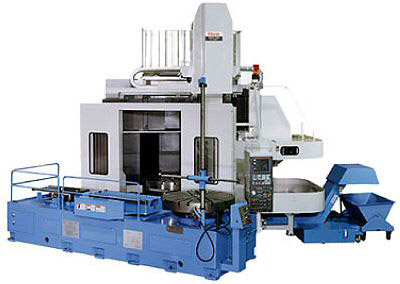

Edgar Industries MAZAK MEGATURN A16N TWIN PALLET MILLING AND TURNING CENTER has a 65 inch table diameter with an 80 inch maximum swing, and can machine a work piece up to 72 inches tall with live milling tooling.

Edgar Industries has two MAZAK 10800 HORIZONTAL MACHINING CENTERS. Each can machine large parts up to 66 x 65 x 55 inches.

Edgar Industries new MAZAK FJV 60/160 VERTICAL MACHINING CENTER can machine large parts up to 59 x 165 x 24 inches.

Click here to view our Facilities List

Large Precision Machining Capabilities

Industry Focus

Aerospace Agricultural Architectural Auto/Truck/Transportation Chemical Electronic Food Machine Tool: Marine
Medical
Military
Oil Field
Optical
Packaging/Converting
Pharmaceutical

Intended Applications

Machine components Engine components Turbine components Hydraulic components Turbomachinery components Construction equipment Shafts Forgings Jewelry Valves: Pins
Thread rod
Fasteners
Spindles
Sockets
Bushings
Spacers
Fittings
Standoffs

Tolerances

.001″

Part Diameter

Max 98in

Part Length

Max 354in

Part Width

Max 80in

Part Height

Max 137.8in

Maximum Part Weight/Maximum Lifting Capacity

20,000lbs

Materials (Metals)

Alloy Steels Aluminum Beryllium Brass Bronze Alloys Carbide Carbon Steel Cobalt Copper Iron Lead: Magnesium
Molybdenum
Nickel
Palladium
Stainless Steel
Stellite (Hardfacing)
Tin
Titanium
Tungsten
Zinc

Equipment

Horizontal Milling and Boring Machines CNC Vertical Boring Mills

Fixturing

In-House Fixturing & Tooling

Equipment Capabilities

CNC Control Capabilities Large Swing Lathe Milling: CAD Design Services
CAM Programming Services
Reverse Engineering

Machinery Axis

4 Live Tooling

Secondary Services Offered

Assembly Drilling Deep hole Drilling Tapping Bending Threading Broaching Counter Sinking Pressing Milling: Reaming
Welding
Plating
Passivating
Etch and Chromating
Heat Treating
Centerless Grinding
Anodizing
Inserting Plastic Molding

Advantages of Turning

Tight tolerances Short lead times Materials compatible

Production Volume

Specialty Production Shop Prototype Low Volume Small Run: High Volume
Large Run
Long Run
Large Scale Production Volume Run

Lead Times Available

Quoted on job by job basis Emergency services available Rush Services Available

Industry Standards

ASME American Society of Mechanical Engineers ISO-9001-2015 International Organization for Standardization ITAR

File Formats

IGES Parasolid SAT AutoDesk Inventor Solid Works

Solid Edge
CADL
STL
VDA
ASCI
