Custom Manufactured Circuit Breaker Tank Extension for the Power Industry

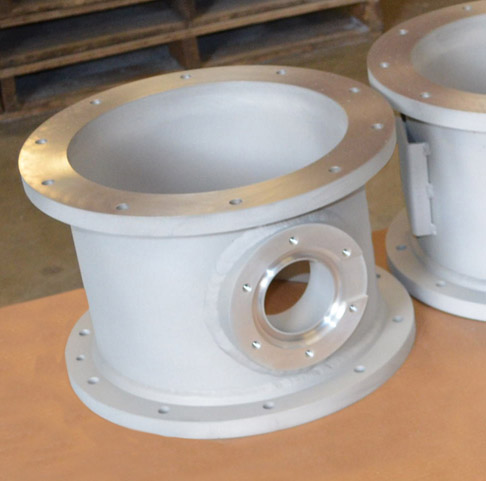

Knowing full-well our expertise when it comes to welding, fabricating, machining, and testing, the power industry contacted Edgar Industries to deliver top hat-shaped tank extensions for circuit breakers of varying dimensions. Called upon to deliver over 20 in one week including testing, we were more than happy and able to oblige. Using a MAZAK H600 horizontal machining center to completely weld, machine and hydrotest two respective tank extension sizes, we produced one tank extension measuring 12 inches in diameter and one measuring 24 inches; each with a .500-inch wall thickness. Our standards readily met the ASME Section IX Welding, ASME Section VIII. For other examples of our work for high-tech aerospace and energy clients, contact Edgar Industries today, or consult our website further.
Specifications for this Custom Tank Extension
Product Description
-
Tank extensions for circuit breakers for the Power Industry
Capabilities Applied/Processes
-
Welding fabricating machining and testing
Equipment Used to Manufacture Part
-
Machine MAZAK H600 Horizontal Machining Center 6 pallets
TIG welding
Hydrotesting equipment
Overall Part Dimensions
-
Inside Diameter: 12 inches and 24 inches
Thickness: .500 inch wall thickness
Tightest Tolerances
-
NIL
Material Used
-
Aluminum
Max Material Finish
-
Sandblast finish
In process testing/inspection performed
-
Hydrotesting
Estimated Part Weight
-
Varies per part 12 or 24 inch
Industry for Use
-
Power – Energy
Delivery Location
-
Pittsburgh, Pennsylvania
Standards Met
-
ASME Section IX Welding, ASME Section VIII (Boiler, pressure vessel)
Product Name
-
Tank Extension
