Custom Fabrication of a Torque Tube for the Aerospace Industry

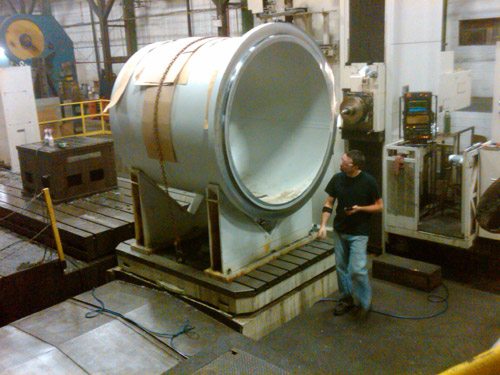

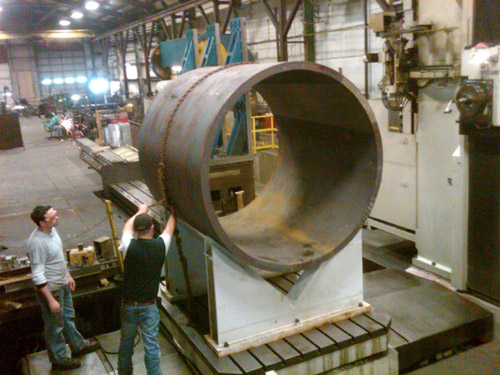

A high-tech aerospace client in Philadelphia invited Edgar Industries to produce a 27,000-lb. torque tube to be used in a flight simulator application. We used our Toshiba BF130-B CNC boring mill with rolled 3-inch steel to craft a tube part that was 88.625 OD X 82.500 inches long with perfect-proportioned tolerances. After welding flanges to the tube, we sandblasted the metal and appled primer. All this work was performed and finished within 45 hours.
For other examples of our work for high-tech aerospace and DoD clients, contact Edgar Industries today, or consult our website further.
Specifications for this Custom Manufactured Torque Tube
Product Description
-
This torque tube is used within a flight simulator application.
3-inch steel rolled and welded.
Took about 45 hours to manufacture
Capabilities Applied/Processes
-
Rolling
Welding- Weld Rolled Material
- Weld Flanges to Tube
Machining (Milling)
Painting- Sprayed
Equipment Used to Manufacture Part
-
TOSHIBA BF130-B
Overall Part Dimensions
-
O.D.: 88.625 OD X 82.500 inches long
Tightest Tolerances
-
Normal
Material Used
-
3 inch carbon Steel rolled and welded
Max Material Finish
-
Sandblasted and painted with primer
In process testing/inspection performed
-
Normal
Estimated Part Weight
-
27,000 lbs
Industry for Use
-
Aerospace
Delivery Location
-
Philadelphia, Pennsylvania
Standards Met
-
Customer supplied print, 2D CAD Drawing
Product Name
-
Torque Tube
