Facilities List
CNC Vertical Machining Centers | CNC Horizontal Boring Mills | CNC Horizontal Machining Centers | CNC Vertical Turning Lathe | CNC Turning Centers | WaterJet Cutting | Milling Machines | Grinders | Engine Lathes | Forming Equipment | Cutting Equipment | Inspection Equipment | Hole and Punch Shaping | Welding Equipment | Crane Capacity | Finishing
CNC Vertical Machining Centers
(2) Mazak V-20 CNC Vertical Machining Center
-
30″ x 114″ table | 102″ x 31″ x 30″ X-Y-Z
Mazak V-515 Vertical Machining Center
-
21″ x 51″ table | 41.33″ x 20″ x 22″ X-Y-Z | 3300# load
Mazak Accura Jigmatic AJV-60/120 Vertical Machining Center
-
49.2″ x 127.5″ table | 126″ x 55″ x 20″ X-Y-Z | 11,000# load

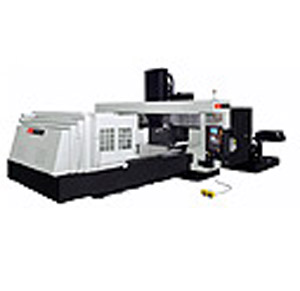

Mazak FJV 60/160 Vertical Machining Center
-
6,000 RPM | 59″ x 165″ x 24″ X-Y-Z | 17,000# load | 60 tools
Mazak AJV-18 Vertical Machining Center
-
16″ x 35″ table | 22″ x 16″ x 15.75″ X-Y-Z | 660# load
Mazak V-655/80 Vertical Machining Center
-
25″ x 88″ table plus 4th axis | 78.75″ x 25.5″ x 25″ X-Y-Z | 5,500# load
HAAS VF-10 Vertical Machining Center
-
120″ x 32″ table │ 120 x 32 x 30 X-Y-Z │ 4000# load
CNC Horizontal Boring Mills
Toshiba BF-130B Floor-Type Horizontal Milling & Boring Machine,
-
5-sided machining 354″ x 137.8″ x 84″ X-Y-Z
with rotary table & right angle head attachment

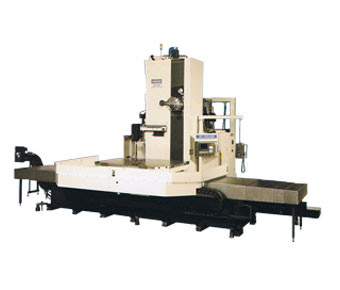

Toshiba BP-130.R22 Planer Type Horizontal Boring & Milling Machine
-
With rotary table | 140″ x 90″ x 60″ x 28″ X-Y-Z-W
Rotary table 70.8″ x 86.6″ | 44,000# max load
Toshiba BP-150.R22 Horizontal Boring Machine
-
With rotary table │ 160″ x 120″ x 84″ x 28″ X-Y-Z-W Rotary table 71″ x 87″ │ 44,000# max load
CNC Horizontal Machining Centers
Mazak Horizontal Center Nexus 5000-II
-
Two 19.68″ x 19.68″ Interchangeable Pallets | High Torque Spindle @ 12,000 rpm |
160 tool changer capacity | 28.75″ x 28.75″ x 29.13″ X-Y-Z | 1542# max. load
(2) Mazak FH10800 Horizontal Machining Center
-
Two 40″ Square Pallets, 120 tools, 66″ x 65″ x 55″ X-Y-Z | 6,000# load
CNC Vertical Turning Lathe

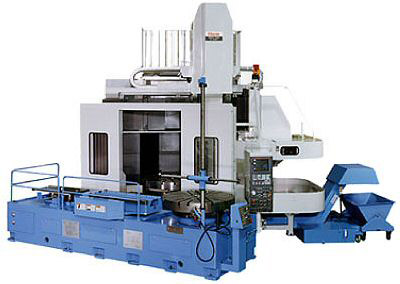

Mazak MEGATURN NEXUS 900M Mill Center, CNC Vertical Turning Lathe
-
36″ table dia. | 39″ max. swing, | 31.5″ work piece height |
6,600# max. work piece | Live tooling
O-M Neo-EX-20 CNC Vertical Turning Lathe
-
78″ table dia. | 90″ max. swing, | 78″ work piece height |
33,000# max. work piece | Live tooling
Mazak MEGATURN A-16N Mill Center, CNC Vertical Turning Lathe
-
65″ table dia. | 80″ max. swing, | 72″ work piece height |
26,400# max. work piece | 2 pallet tables | Live tooling
CNC Turning Centers
Mazak Quick Turn Nexus 250-II MSY
-
10″ max. swing x 21.25″ length | Live tooling | Dual spindle | Bar feeder
Mazak Quick Turn 30
-
15″ max. dia. and 40″ centers
Mazak Quick Turn 250
-
10″ Swing x 19.68″ centers | Automatic magazine bar loader | 4.7″ max. dia.
Mazak Quick Turn 350
-
16.5″ max. swing x 39.75″ centers
Mazak Quick Turn Nexus 450-II M
-
23″ max. Swing x 72″ centers | Live tooling
HAAS ST30
-
21″ max. swing x 32.50 between centers
WaterJet Cutting
OMAX Precision Abrasive Waterjet System
-
6′ x 12′ plate capacity | Capable of cutting most material.
Grinders
Blanchard Rotary Surface Grinder,
-
36 inch magnetic chuck
Reid Surface Grinder, 6 inch x 18 inch table
-
Engine Lathes
Lodge & Shipley Magna Turn
-
34 inch Swing, 20.75 inch Over Cross Slide, 144 inch Between Centers
Heavy Duty Turning Lathe
-
33 inch Swing x 120 inch Between Centers
HES Copy Lathe
-
20 inch Swing x 98 inch Between Centers,
Kingston Lathe
-
17″ Swing x 60″ Between Centers
Colchester Type Lathe
-
15″ Swing x 50″ Between Centers (2)
Forming Equipment
500 Ton Press Brake
-
14.5 feet Long, 12.5 feet Between Housing
200 Ton Press Brake
-
12 feet Long, 10.5 feet Between Housing
Plate Roll
-
0.125″ x 4’with 5″ dia. Top Roll
Cutting Equipment
MG Ind. CNC Burning table with Plasma Burning
-
Capacity of 8’x 20’Plate. Over/Under Water up to 6″ Thick.
Peddinghaus Iron Worker with Angle Shear and Notcher
-
60 Ton Capacity, 1 inch Diameter Punch
Shear 0.375 inch x 10 feet
-
0.375 inch thick steel / 0.500 inch thick aluminum capacity
Lincoln ProCut 80 Plasma Cutting Machine
-
1 inch Stainless Steel Capacity (Hand held)
Kasto HBA 420 AU NC Automatic Saw
-
with Chip Conveyor, 17 inch throat capacity
Kasto Vericut Saw
-
18 x 21 inch
Do-All Band Saws (1)
-
18 inch (2)
HVD-Mech V18 18 x 20 inch Capacity
-
5HP Blade Hydraulic Tilt 45 Degree Right/Left
Inspection Equipment
Faro Arm
-
FaroLaser Tracker
-
All inspection equipment is calibrated to Bureau of Standards
Optical Comparator
-
Thread gages
-
INTRIMIKS
-
Hole and Punch Shaping
Peddinghaus Iron Worker with Hole Punching and Notching
-
60 Ton Capacity, 1 inch Diameter Punch
Welding Equipment
(Welders are ASME Sect. VIII Certified)
MIG Welders (4)
-
AC/DC Precision Tig Welders (4)
-
250 Amp AC/DC Stick Welders (1)
-
Crane Capacity
(2) 10 Ton Bridge Cranes
-
5 Ton Bridge Crane
-
Finishing
Painting and Sand Blasting capability
